Curved Aluminum Cladding Panel

Precision-engineered architectural panels designed for fluid geometries and organic building envelopes.

Request a Quote

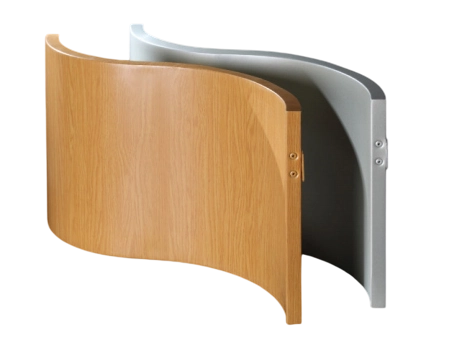

Curved Aluminum Cladding Panel Featured Image

Curved Aluminum Panel Technical Specifications

Item Detail
Material grade AA3003-H14 / AA1100
Panel thickness 2.0 mm – 4.0 mm
Wind load resistance Designed per project, up to 5.0 kPa
Lead time 4–6 weeks
Service life 15–20 years
Minimum radius About 500 mm on standard 3 mm panels
Finish AkzoNobel or PPG PVDF, powder coating, heat-transfer wood grain
Fire performance Non-combustible aluminum; ask for the classification report of the coated panel
Introduction

Architectural Fluidity in Metal

The curved aluminum cladding panel is fabricated with CNC rolling and stretch-forming to achieve precise radii for complex façades. Architects can move from flat surfaces to organic curves without sacrificing structural integrity or weatherproofing. To discuss your project, contact our team directly.

Curved Cladding

Why Choose Curved Aluminum Cladding

  • Custom Radius Engineering

    Each panel is formed to specific project coordinates so it aligns across hyperbolic or cylindrical surfaces.

  • Surface Finish Versatility

    Finishes include high-durability PVDF, powder coating and heat-transfer wood grain.

  • Lightweight Efficiency

    Aluminum's strength-to-weight ratio reduces dead load on the primary structure compared with stone or GRC.

  • Weather and Corrosion Resistance

    The panels are non-combustible and UV-resistant, maintaining color stability in coastal or high-pollution settings.

custom

Customization and Fabrication Standards

Panels use high-grade aluminum sheet, shaped by multi-axis bending and welding for smooth transitions. Several edge returns and integrated mounting brackets are available to simplify site installation.

External finishes include AkzoNobel or PPG PVDF coatings, which carry a 20-year fade guarantee. Wood-grain textures are applied by vacuum heat transfer. For double-curved forms see the 3D sculptural aluminum facade panel.

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

The FAQ covers specification, installation and customization of curved aluminum cladding panel systems.

What is the minimum radius achievable for these panels?
The minimum depends on thickness and alloy grade. Curves as tight as 500 mm are typically achievable on standard 3 mm panels.
Can these panels be used for interior applications?
Yes. They are often used for interior columns, lobby feature walls and ceiling transitions.
How are the panels joined to maintain a smooth curve?
Either a male-female interlocking system or butt joints with internal splice plates are used to keep the visual flow continuous.
Are the wood-grain finishes suitable for outdoor use?
Yes. The outdoor-grade finishes use a PVDF base coat that resists UV and prevents peeling or fading.
Do you provide shop drawings for complex geometries?
Yes. The engineering team provides full 3D modeling and shop drawings so each curved segment fits the site grid.
What is the lead time?
4–6 weeks, counted from approved shop drawings and color sample. For more details, contact our team about your project.
