Corrugated Metal Roof Panel

Engineered standing seam metal roofing systems for superior structural integrity and architectural versatility.

Request a Quote
Corrugated Metal Roof Panel Featured Image
  • 65 mm

    System Depth

  • 300 / 330 / 400 / 430 mm

    Panel Width

  • ≤4.5 kPa

    Wind Load Resistance

  • 3-5 Weeks

    Lead Time

  • 20-30 Years

    Service Life

Introduction

High-Performance Standing Seam Roofing

Our corrugated metal roof panels feature a 65mm rib height standing seam design, providing exceptional water tightness and structural rigidity. Available in Aluminum-Magnesium-Manganese (Al-Mg-Mn) and Titanium Zinc, these panels are engineered to withstand extreme weather while maintaining a sleek, modern aesthetic for large-scale developments.

Benefits

Why Choose Our Corrugated Metal Roof Panels

  • Superior Water Tightness and Drainage

    The 65mm high standing seam profile prevents water ingress even during heavy rainfall and facilitates rapid drainage on low-slope roofs.

  • Thermal Expansion Accommodation

    The sliding clip system allows the panels to expand and contract freely with temperature changes, preventing oil-canning and structural stress.

  • Exceptional Corrosion Resistance

    Utilizing high-grade Al-Mg-Mn alloys or Titanium Zinc ensures a service life exceeding 50 years in diverse coastal or industrial environments.

  • Lightweight Structural Efficiency

    The high strength-to-weight ratio reduces the load on the primary building structure, allowing for wider purlin spacing and lower installation costs.

Standard

Material and Finish Customization

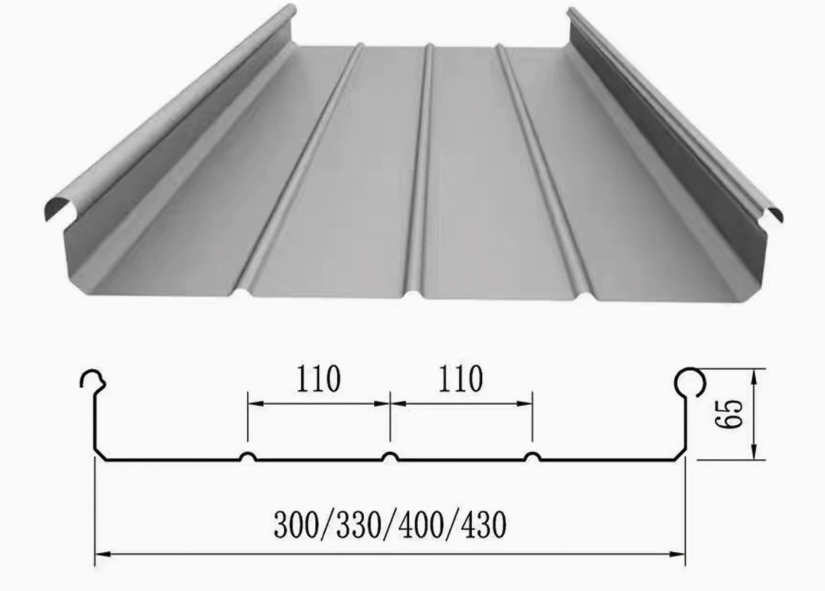

Panels are available in standard widths of 300mm, 330mm, 400mm, and 430mm to suit various architectural modules. We offer thicknesses ranging from 0.7mm to 1.2mm depending on the required span and wind load specifications.

Finishes include high-durability PVDF coatings, PE coatings, or natural mill finishes. We provide a full range of RAL colors and specialized textures to meet specific design requirements for modern commercial and industrial facades.

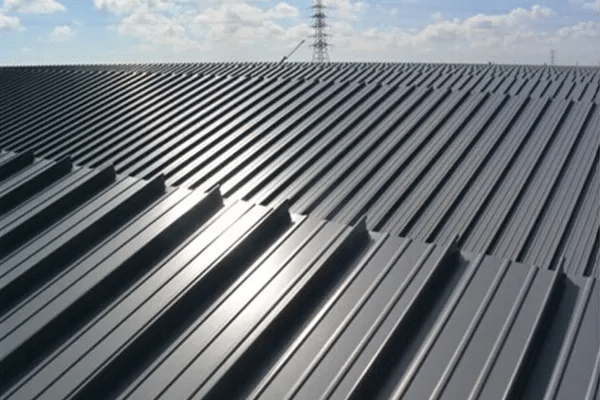

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical insights regarding the installation and performance of our standing seam metal roofing systems.

What is the minimum roof pitch for these panels?
The standing seam profile allows for installation on roof pitches as low as 1.5 to 3 degrees, depending on local rainfall intensity.
Can these panels be used for curved roof designs?
Yes, the panels can be factory-tapered or site-curved to accommodate convex, concave, or S-shaped architectural designs.
How are the panels secured to the structure?
Panels are fixed using concealed clips that are seamed into the rib, eliminating through-fasteners and potential leak points.
What materials are available for harsh environments?
For coastal or highly corrosive areas, we recommend our Al-Mg-Mn alloy with a PVDF coating or Titanium Zinc for maximum longevity.
Do you provide technical support for wind load calculations?
Our engineering team provides comprehensive wind uplift calculations and clip spacing layouts based on your project's geographic location and height.
