Standing Seam Aluminum Magnesium Manganese Roof Panel

A premium, lightweight roofing solution engineered for extreme weather resistance and architectural flexibility.

Request a Quote
Standing Seam Aluminum Magnesium Manganese Roof Panel Featured Image
  • AA3003 H24 Series Alloy

    Material Grade

  • 140–180 MPa

    Tensile Strength

  • 203.5 W/m·K

    Thermal Conductivity

  • AAMA 2605 (PVDF)

    Coating Standard

  • 50+ Years

    Service Life

Introduction

Advanced Metal Roofing Technology

Our Aluminum Magnesium Manganese (Al-Mg-Mn) standing seam panels are fabricated from high-strength AA3003 H24 alloy, offering an optimal strength-to-weight ratio. Designed for large-span structures, the system features a concealed mechanical seam that eliminates through-fasteners, ensuring 100% watertight integrity.

Benefits

Why Choose Al-Mg-Mn Standing Seam Systems

  • Exceptional Corrosion Resistance

    The alloy naturally forms a protective oxide layer, making it ideal for coastal and industrial environments where traditional steel fails.

  • Superior PVDF Coating Performance

    Compliant with AAMA 2605 standards, our fluorocarbon finishes resist chalking, fading, and chemical erosion for decades.

  • Structural Flexibility and Lightweight

    With a specific gravity of only 2.73g/m³, these panels reduce dead load on the building frame while allowing for complex curved geometries.

  • Superior Thermal and Mechanical Stability

    Features an expansion coefficient of 21 (-108)°C and high elongation (≥5%), allowing the roof to safely absorb thermal movement.

Standard

Customization and Material Standards

Our panels are available in various rib heights (typically 25mm or 65mm) and widths to meet specific wind load and drainage requirements. The AA3003 alloy composition is strictly controlled, containing 1.0-1.6% Manganese to enhance structural hardness without sacrificing workability.

Finishing options include high-gloss or matte PVDF coatings tested for 10-year exposure in high-UV environments like South Florida, ensuring the aesthetic integrity of the building remains intact under harsh sunlight.

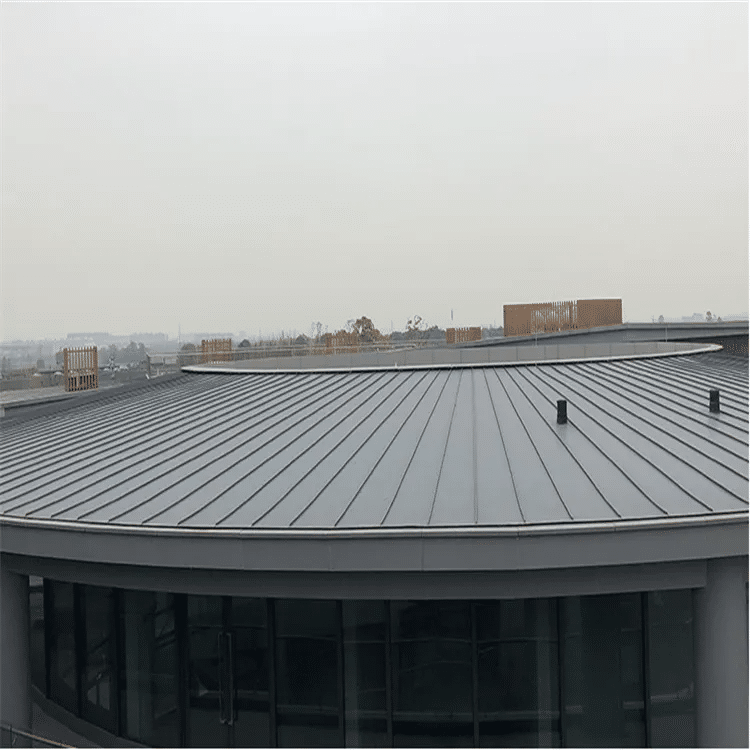

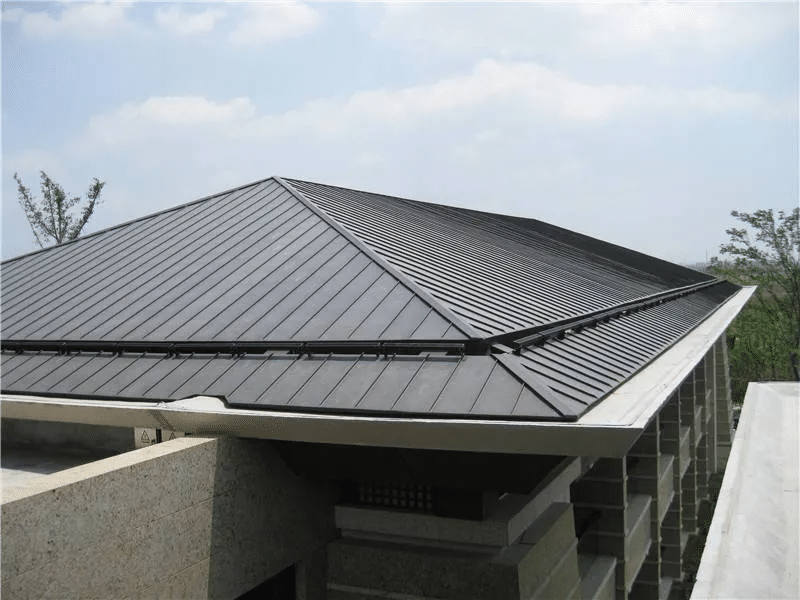

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical insights regarding the installation and performance of our aluminum magnesium manganese roofing systems.

What makes AA3003 alloy better than standard aluminum?
The addition of Manganese increases the strength of the panel by approximately 20% over 1100 series aluminum, providing better dent resistance and structural span capability.
How does the standing seam handle thermal expansion?
The system uses sliding clips that allow the panels to move longitudinally as temperatures change, preventing oil-canning or fastener fatigue.
Is this roofing system suitable for low-slope applications?
Yes, the standing seam design is highly effective for low slopes, as the raised seams prevent water ingress even during heavy rainfall or snow accumulation.
What is the fire rating of these panels?
Aluminum magnesium manganese panels are non-combustible and typically achieve Class A fire ratings, meeting stringent international building codes.
Can the panels be curved for arched roofs?
Absolutely. The material's high elongation properties allow it to be tapered or curved (convex or concave) to fit complex architectural designs.
