Curved Aluminum Honeycomb Ceiling Panel

Precision-engineered curved surfaces combining structural rigidity with lightweight aluminum honeycomb core technology.

Request a Quote
Curved Aluminum Honeycomb Ceiling Panel Featured Image
  • AA3003 H24 Series Alloy

    Material Grade

  • 6.55 KG/m²

    Area Density

  • Grade A2 (Non-combustible)

    Fire Performance

  • 140–180 MPa

    Tensile Strength

  • 18 dB

    Sound Insulation

Introduction

Advanced Geometries for Modern Interiors

Our Curved Aluminum Honeycomb Ceiling Panels utilize a high-strength AA3003 H24 alloy skin bonded to a hexagonal core, allowing for complex architectural curves without sacrificing flatness or structural integrity. Designed for large-span ceiling systems, these panels offer an ultra-flat finish and exceptional resistance to deflection.

Benefits

Why Choose Curved Aluminum Honeycomb Systems

  • Superior Surface Flatness and Rigidity

    The honeycomb sandwich structure ensures the panel remains perfectly flat even in large formats, preventing the 'oil canning' effect common in solid metal sheets.

  • Lightweight Structural Efficiency

    At only 6.55kg/m², these panels significantly reduce the dead load on the building's suspension system while maintaining high bending stiffness of 9980MPa.

  • Excellent Acoustic and Thermal Insulation

    The air trapped within the honeycomb cells provides a natural thermal barrier and a sound insulation coefficient of 18dB for improved interior comfort.

  • AAMA 2605 Compliant Finishes

    Coated with high-performance fluorocarbon (PVDF), our panels withstand salt spray, humidity, and aging, ensuring long-term color retention and corrosion resistance.

Standard

Customization and Manufacturing Precision

Our manufacturing process adheres to strict tolerances, with a plane flatness deviation of less than 0.5mm per 1000mm. We offer custom folding heights and diagonal precision within ±2.0mm for panels under 2000mm, ensuring seamless integration with C-channel and specialized suspension grids.

Finishes are available in a wide spectrum of PVDF coatings, including stone textures, wood grains, and metallic effects. All coatings meet AAMA 2605 standards, featuring a pencil hardness of ≥2H and zero peeling under cross-cut adhesion testing.

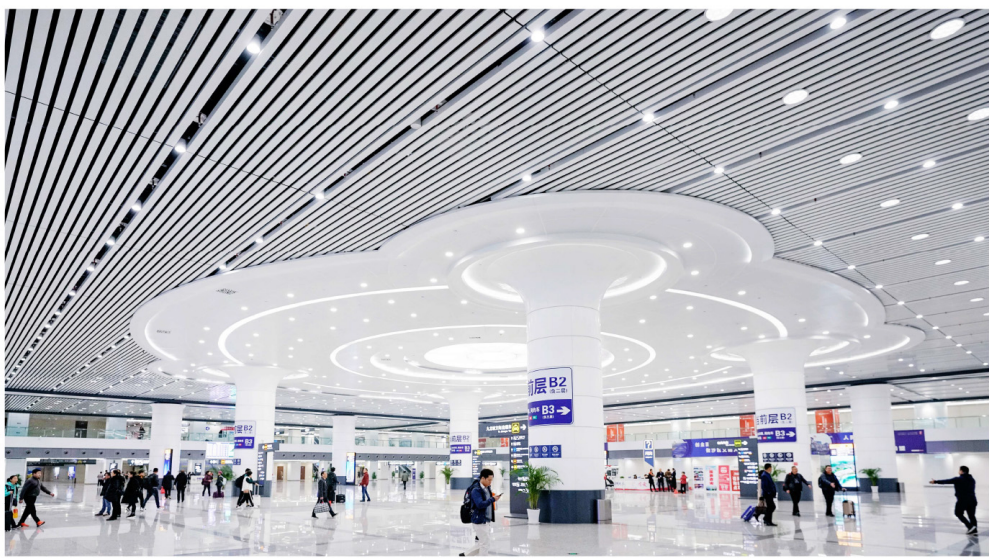

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical details regarding the installation, durability, and customization of our curved honeycomb ceiling systems.

What is the maximum size for a curved honeycomb panel?
Standard lengths are up to 2000mm with a tolerance of ±1.0mm, but custom oversized panels can be engineered for specific project requirements.
How are these panels installed in a ceiling system?

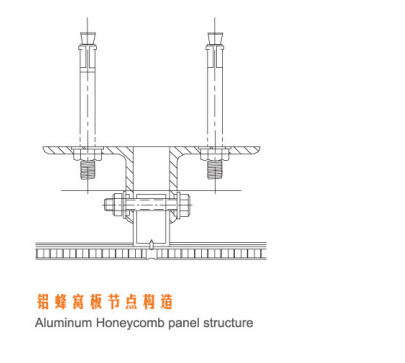

They are typically installed using a specialized hook-on or Z-clip system attached to a primary C38 or C50 carrier grid, as shown in our node diagrams.
Are the panels suitable for high-humidity environments?
Yes, the AA3003 alloy and PVDF coating provide excellent moisture resistance, passing 72-hour humidity tests at 38°C without blistering.
Can the panels be perforated for acoustic performance?
Yes, we can provide micro-perforations combined with acoustic tissues to further enhance the sound absorption beyond the base 18dB insulation.
What is the fire rating of the honeycomb core?
The entire panel assembly is rated as Fire Retardant Grade A2, making it suitable for high-occupancy public spaces like airports and malls.
