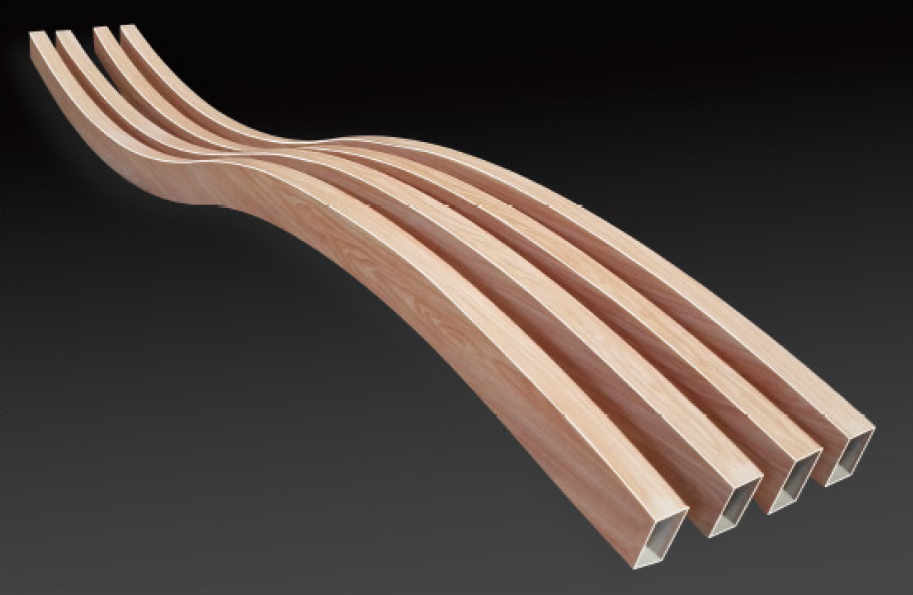

Curved Square Tube

Dynamic architectural aluminum baffle systems designed for fluid interior and exterior spatial transitions.

Request a Quote
Curved Square Tube Featured Image
  • AA1100, 3003 H24 Aluminum Alloy

    Material Grade

  • 0.8mm – 3.0mm

    Wall Thickness

  • 20mm – 100mm

    Profile Width

  • 3-4 Weeks

    Lead Time

  • 15 Years

    Service Life

Introduction

Fluid Architectural Geometry

The Curved Square Tube system, also known as shaped aluminum baffles, offers a sophisticated alternative to traditional linear ceilings. By utilizing precision-bent aluminum profiles, this system creates a sense of movement and layered depth, breaking the monotony of flat surfaces in high-traffic environments.

Benefits

Why Choose Curved Square Tube Systems

  • Enhanced Spatial Ventilation and Openness

    The open-cell baffle design allows for excellent airflow and seamless integration of lighting, fire sprinklers, and HVAC systems.

  • High-Precision Custom Curvature

    Advanced CNC bending technology ensures consistent radii for complex wave patterns, arches, and organic architectural forms.

  • Durable Wood-Grain and Metallic Finishes

    Available in heat-transfer wood grain or PVDF coatings that provide the aesthetic warmth of timber with the fire-rated safety of aluminum.

  • Structural Versatility and Easy Maintenance

    Lightweight aluminum construction reduces structural load while providing a durable surface that is easy to clean and resistant to moisture.

standard

Customization and Technical Standards

Our curved square tubes are available in a wide range of cross-sections and radii to meet specific project requirements. The system utilizes a specialized carrier or suspension bracket that ensures precise alignment of each tube, maintaining the integrity of the curved design across large spans.

Surface treatments include high-performance powder coating, PVDF for exterior applications, and realistic wood-grain textures. All products meet international fire safety standards and are manufactured under ISO 9001 quality management systems.

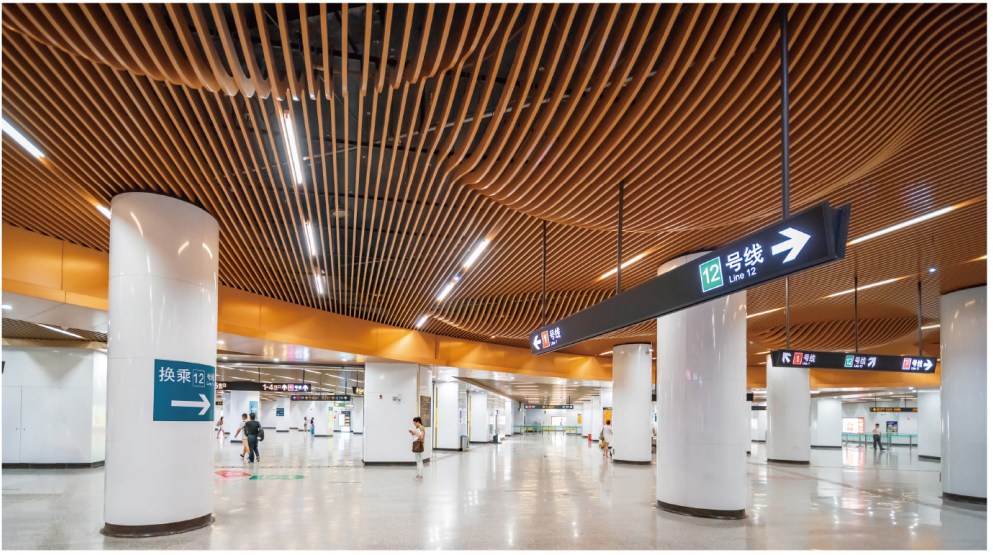

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical and logistical information regarding the specification and installation of curved aluminum baffle systems.

What is the minimum bending radius for the square tubes?
The minimum radius depends on the tube's wall thickness and width, typically starting from 500mm to ensure profile integrity without deformation.
Can these be used for exterior facade applications?
Yes, when specified with a PVDF coating, these tubes are highly resistant to UV radiation and weathering, making them suitable for external decorative screens.

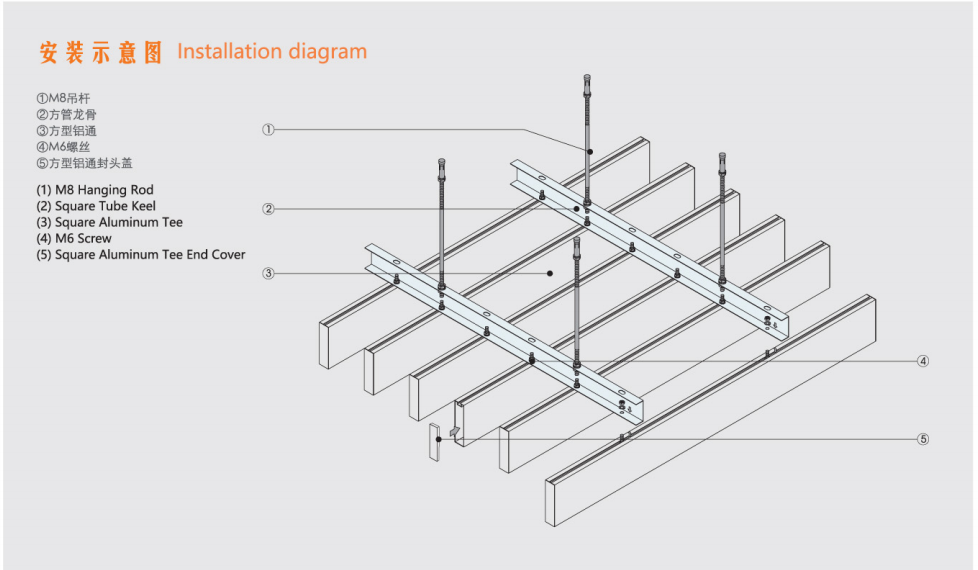

How are the curved tubes installed?
They are typically secured using a specialized U-shaped keel or custom suspension brackets designed to follow the intended arc of the design.
Are custom colors and wood grains available?
We offer a full range of RAL colors and over 50 different wood-grain patterns to match your interior or exterior design palette.
Is the system compatible with standard lighting fixtures?
The open nature of the baffle system allows for easy installation of linear LEDs or recessed spotlights between or within the tubes.
