Structural Glass Curtain Wall Tie Rod Connector System

A precision-engineered connection component designed for structural glass curtain wall systems, providing stable load transfer, adjustable installation, and reliable long-term performance in frameless glass facades.

Request a Quote

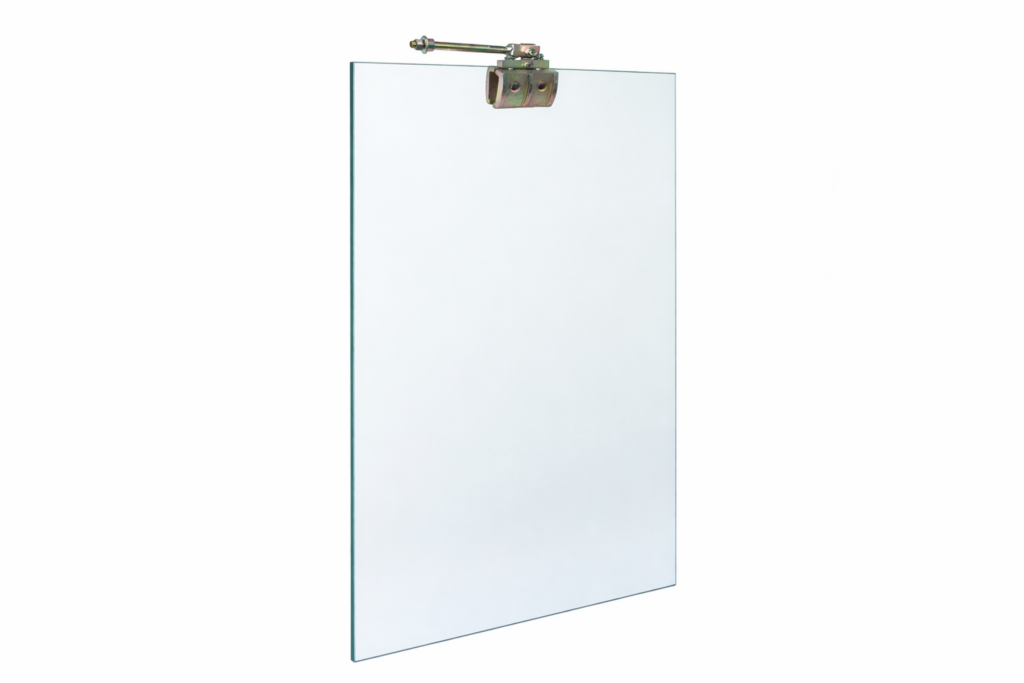

Structural Glass Curtain Wall Tie Rod Connector System Featured Image

Adjustable Rod System
Precise Installation Alignment
Steel / Stainless Steel
Structural Material
Multi-Directional Fixing
Flexible Design
Corrosion-Resistant Coating
Outdoor Durability
Laminated Glass Compatible
Enhanced Safety

Introduction

Tie Rod Connection System for Structural Glass Curtain Walls

The tie rod connector system is a critical structural component used in frameless glass curtain wall assemblies. It connects glass panels to the main structural system through adjustable rods and fixing brackets, ensuring accurate positioning and stable load transfer.

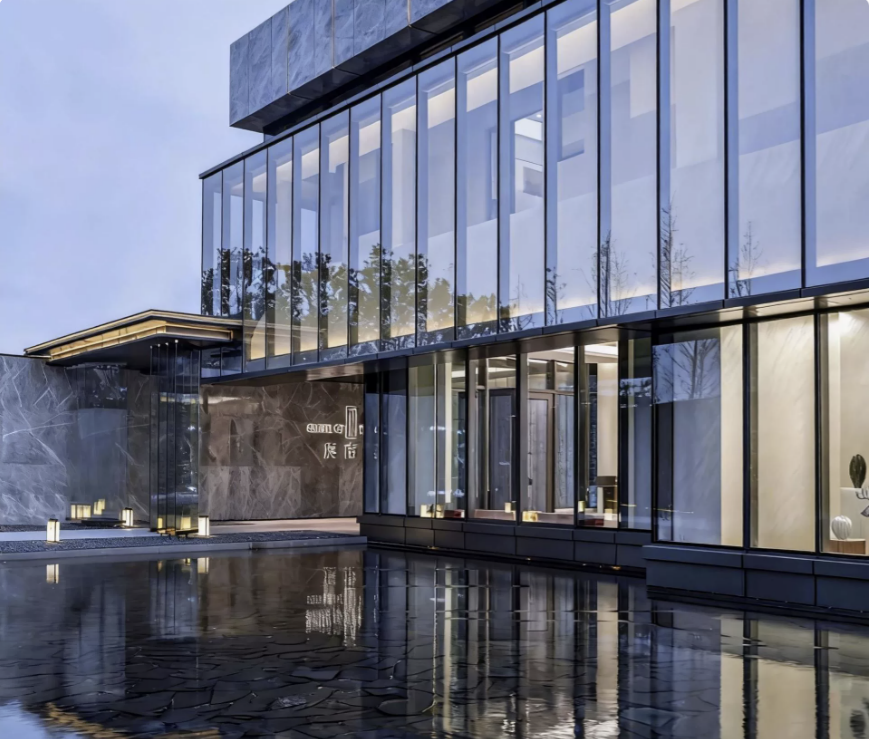

This system is commonly applied in point-supported glass facades, atriums, and large-span transparent structures where traditional frame-based systems are not suitable. The adjustable design allows on-site fine-tuning, improving installation accuracy and reducing structural stress on glass panels.

Benefits

Why Tie Rod Systems Are Used in Glass Curtain Wall Structures

Precise Installation Adjustment

Threaded rod design allows fine adjustment during installation, ensuring accurate alignment of glass panels.
Reliable Load Transfer

Effectively transfers wind load and dead load from glass panels to the main structure.
Flexible Structural Connection

Supports multi-directional connections, suitable for complex facade geometries.
High Structural Safety

Works with laminated glass systems to maintain safety even under extreme conditions.

Standard

Structural Configuration and Material Options

Tie rod systems are typically manufactured from high-strength carbon steel or stainless steel, depending on project requirements and environmental conditions. Surface treatments such as galvanizing or anti-corrosion coating are applied to ensure long-term durability in outdoor environments.

The system includes adjustable threaded rods, fixing brackets, and connection plates designed to accommodate structural tolerances and installation deviations. It can be engineered to match different glass thicknesses and support configurations.
