Semi-Hidden Frame Curtain Wall System

A balanced facade solution combining visible framing with hidden glass joints. This semi-hidden curtain wall system offers enhanced structural reliability while maintaining a clean and modern architectural appearance.

Request a Quote

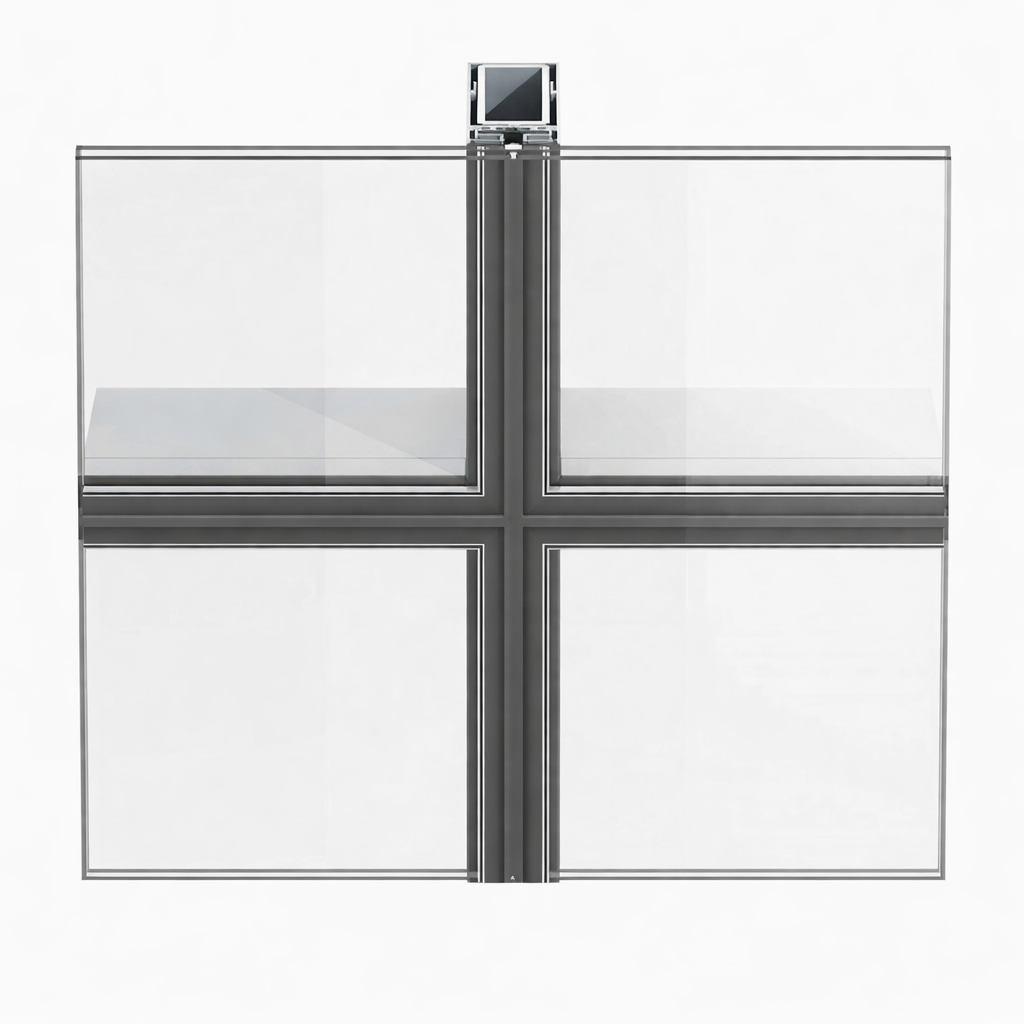

Semi-Hidden Frame Curtain Wall System Featured Image
  • 60–180 mm

    System Depth

  • ≤1.4 W/m²K

    Thermal Performance

  • ≤6.5 kPa

    Wind Load Resistance

  • 2-4 Weeks

    Lead Time

  • 15 Years

    Warranty

Introduction

Semi-Hidden Curtain Wall System Overview

The semi-hidden frame curtain wall system combines exposed and concealed framing elements to achieve both structural stability and refined facade aesthetics. Typically, one direction of the frame is visible while the other remains hidden, creating a balanced architectural appearance with improved mechanical support.

Benefits

Why Choose a Semi-Hidden Frame Curtain Wall System

  • Balanced Aesthetics with Partial Frame Exposure

    Combines visible and concealed elements to achieve a structured yet modern facade appearance.

  • Enhanced Structural Stability with Mechanical Fixing

    Exposed framing components provide additional mechanical support, improving system reliability.

  • Reliable Weather Sealing and Drainage Performance

    Designed with effective sealing paths to ensure long-term resistance to water and air infiltration.

  • Flexible Design for Various Building Types

    Suitable for a wide range of architectural styles requiring both performance and visual structure.

standard

Semi-Hidden Curtain Wall Design and Finishing Options

The system allows different combinations of exposed and hidden directions, such as horizontal exposed with vertical hidden or vice versa. It supports various glazing options, including double and laminated glass, to meet structural and energy performance requirements.

Aluminum profiles can be finished with PVDF coating, powder coating, or anodizing to ensure durability and resistance to environmental conditions. Custom configurations are available based on project design and performance requirements.

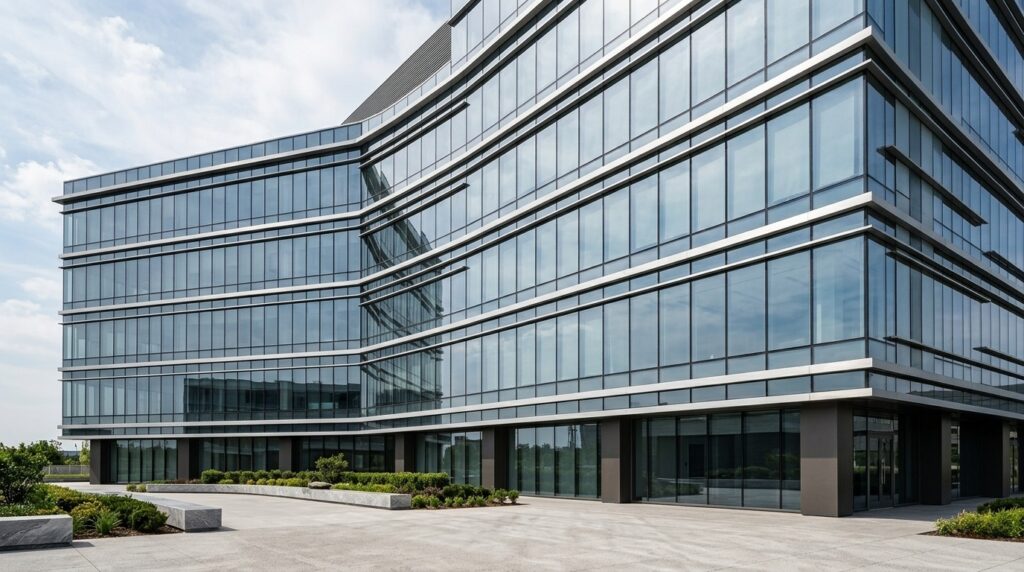

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Understanding structural support and facade appearance is key when choosing a semi-hidden curtain wall system. The following FAQs highlight essential considerations.

What is a semi-hidden curtain wall system?
It is a curtain wall system where part of the aluminum frame is visible while the rest is concealed behind the glass.
How is it different from a fully hidden frame system?
Fully hidden systems have no visible framing, while semi-hidden systems expose part of the frame for additional structural support.
Is this system more stable than hidden frame systems?
Yes, the exposed framing provides additional mechanical fixing, improving structural reliability.
What design options are available?
You can choose which direction of the frame is exposed, depending on architectural requirements.
Is it suitable for high-rise buildings?
Yes, it provides sufficient strength and stability for mid- to high-rise applications.
