Spider Glass Curtain Wall System

A frameless glass facade system using stainless steel spider fittings to achieve maximum transparency. Ideal for entrances, atriums, and showcase architecture where openness and visual impact are essential.

Request a Quote

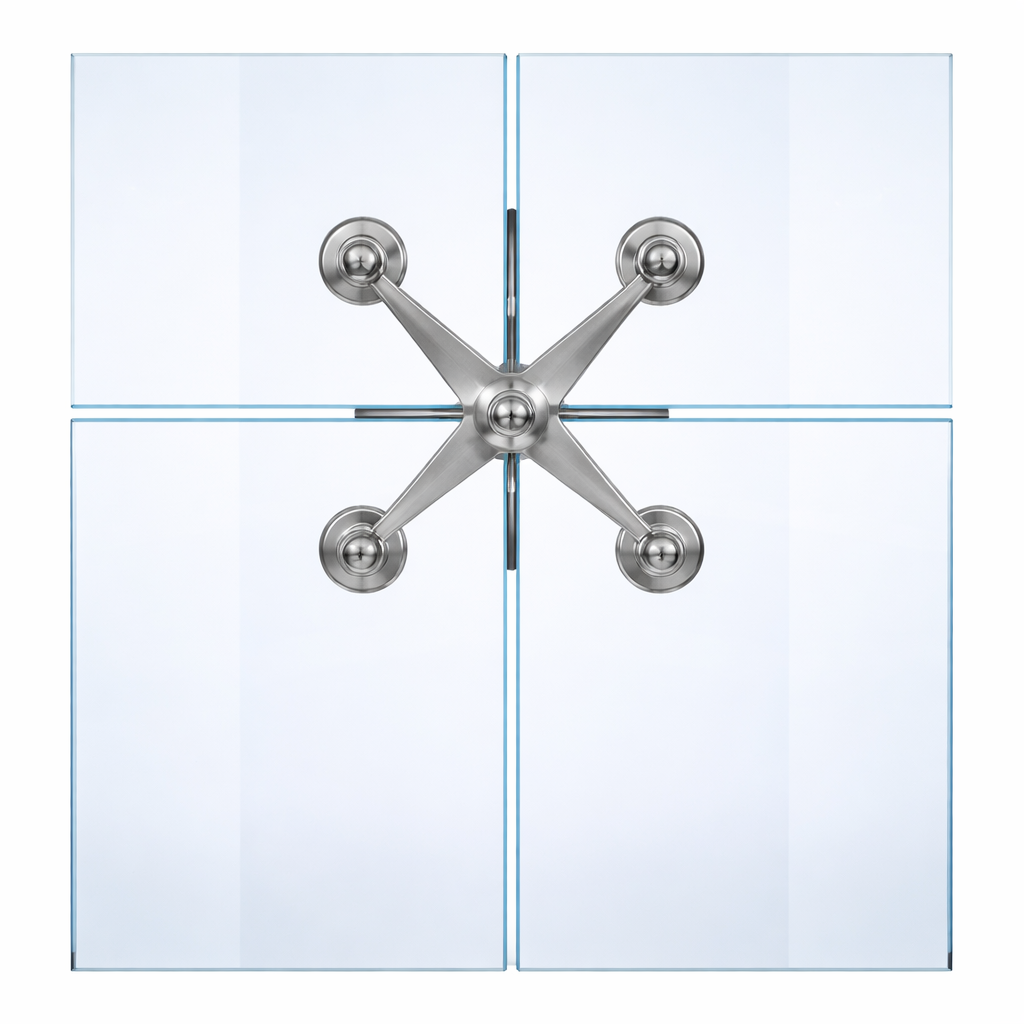

Spider Glass Curtain Wall System Featured Image
  • 12–25 mm

    System Depth

  • ≤5.5 kPa

    Wind Load Resistance

  • Stainless Steel 304 / 316

    Fitting Material

  • 2-4 Weeks

    Lead Time

  • 15 Years

    Warranty

Introduction

Frameless Spider Glass Facade System

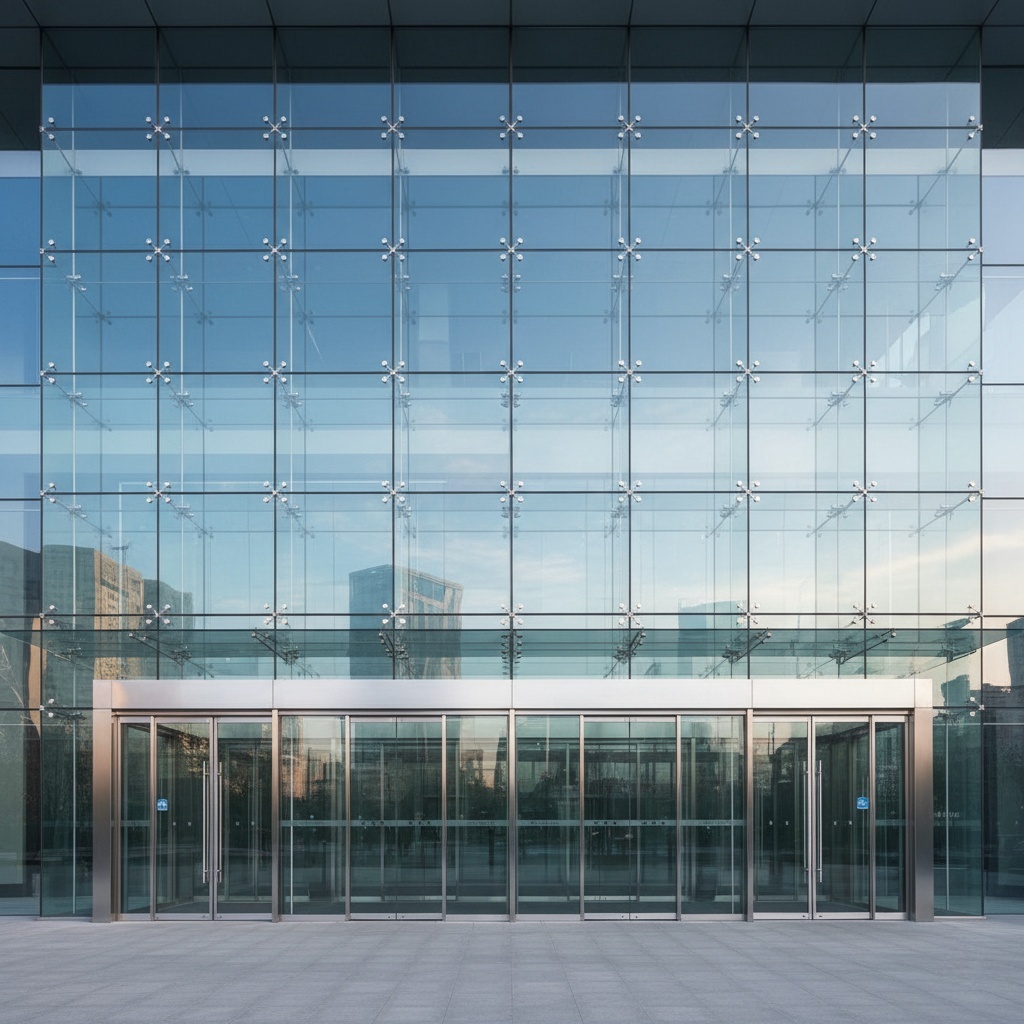

The spider glass curtain wall system is a point-supported glazing solution where glass panels are fixed using stainless steel spider fittings instead of traditional frames. This design creates a fully transparent facade while maintaining structural stability, making it especially suitable for projects that require open visibility and modern architectural expression.

Benefits

What Makes Spider Glass Curtain Wall Systems Ideal for Transparent Facades

  • True Frameless Design for Open Visual Experience

    Removes all visible framing elements, allowing uninterrupted views and maximum natural light penetration.

  • Precision-Engineered Spider Fittings

    High-strength stainless steel connectors ensure stable load distribution while maintaining a refined architectural appearance.

  • Adaptable to Different Structural Systems

    Can be integrated with steel frames, glass fins, or tension rod systems depending on project requirements.

  • Clean and Minimal Aesthetic for Modern Architecture

    Enhances building design with a lightweight, high-end glass facade that fits contemporary architectural trends.

Standard

Spider Glass Curtain Wall Structure and Material Options

The system supports various connection configurations, including four-arm, two-arm, and custom spider fittings to accommodate different panel layouts and load conditions. Glass panels can be configured with laminated or insulated glass depending on safety and performance requirements.

Fittings are available in stainless steel grades such as 304 and 316 to ensure durability and corrosion resistance. Structural support systems can be customized based on project design, including rigid frames or flexible support structures.

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Selecting a spider glass curtain wall system involves understanding its structural behavior, visual advantages, and installation requirements. Below are answers to commonly asked questions.

What is a spider glass curtain wall system?
It is a frameless glazing system where glass panels are fixed using stainless steel spider fittings instead of traditional aluminum frames.
Is the system safe for large glass panels?
Yes, it is engineered to distribute loads through multiple connection points, ensuring structural stability.
What types of support structures can be used?
It can be supported by steel frames, glass fins, or cable systems depending on the project design.
Can this system be used for curved facades?
Yes, it is highly adaptable and suitable for both flat and curved glass installations.
What are the key considerations for this system?
It requires precise engineering, high-quality fittings, and careful installation to ensure performance and safety.
