Framed Aluminum Curtain Wall Profiles

Precision-engineered skeleton systems for high-performance architectural glass facades.

Request a Quote
Framed Aluminum Curtain Wall Profiles Featured Image
  • 120–180 mm

    System Depth

  • ≤1.8 W/m²K

    Thermal Performance

  • ≤5.0 kPa

    Wind Load Resistance

  • 4-6 Weeks

    Lead Time

  • 15 Years

    Service Life

Introduction

Robust Structural Skeleton Systems

Our Framed Aluminum Curtain Wall Profiles provide the essential structural framework for modern building envelopes. Designed for stick-built applications, these profiles ensure superior load distribution and precise alignment for large-scale glazing units.

Benefits

Why Choose APEX Framed Profile Systems

  • High Structural Integrity and Load Bearing

    Engineered from 6063-T5/T6 aluminum alloy to withstand significant wind pressure and dead loads in high-rise applications.

  • Advanced Weatherproofing and Drainage Design

    Features integrated pressure-equalized drainage channels to prevent water infiltration and ensure long-term facade durability.

  • Versatile Architectural Design Flexibility

    Compatible with various infill thicknesses and available in multiple mullion depths to meet specific structural span requirements.

  • Corrosion Resistant Surface Treatments

    Available in PVDF, powder coating, or anodized finishes to withstand harsh coastal and industrial environments.

Standard

Customization and Technical Standards

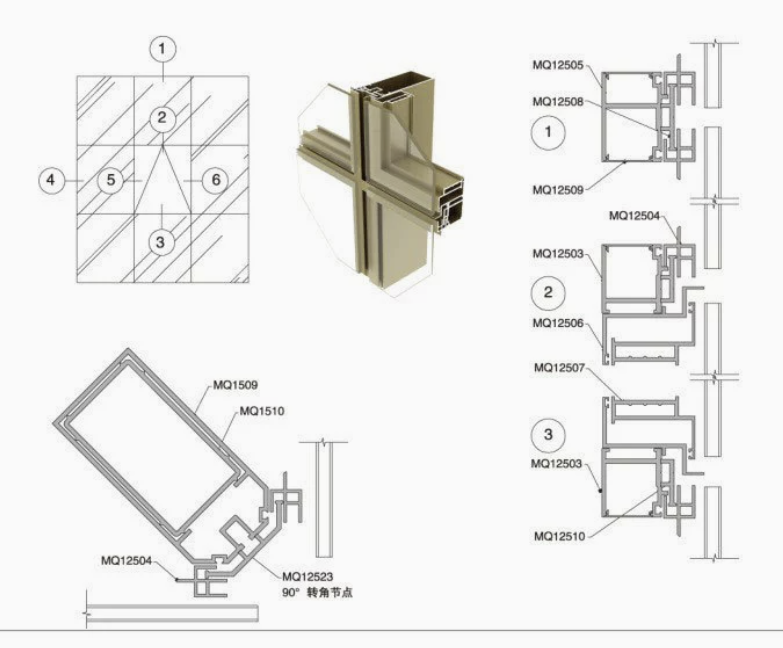

Our profiles are manufactured to meet international standards including ASTM and GB/T. We offer a wide range of mullion and transom configurations, including 90-degree corner joints (MQ12523) and specialized thermal break inserts for enhanced energy efficiency.

Finishing options include over 200 RAL colors in powder coating, high-durability PVDF for UV resistance, and architectural anodizing for a premium metallic aesthetic.

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical and logistical information regarding our aluminum curtain wall skeleton systems.

What aluminum alloys are used for these profiles?
We primarily use 6063-T5 or 6061-T6 aluminum alloys, providing the optimal balance of strength and surface finish quality.
Can these profiles support triple-pane insulated glass?
Yes, the system is designed with adjustable glazing pockets to accommodate double or triple-glazed units for superior thermal performance.
Do you provide technical shop drawings?
APEX provides comprehensive node diagrams and technical support to assist architects and contractors with installation detailing.
How are the profiles shipped for international projects?
Profiles are typically shipped in 5.8m or 6m lengths, protected by PE film and packed in reinforced wooden crates for sea freight.
Are the profiles compatible with hidden vent windows?
Yes, our framed system is designed to integrate seamlessly with both outward-opening and tilt-and-turn hidden ventilation inserts.
