Modelling Aluminum Panel

Precision-engineered architectural panels designed for complex geometric facades and bespoke structural aesthetics.

Request a Quote

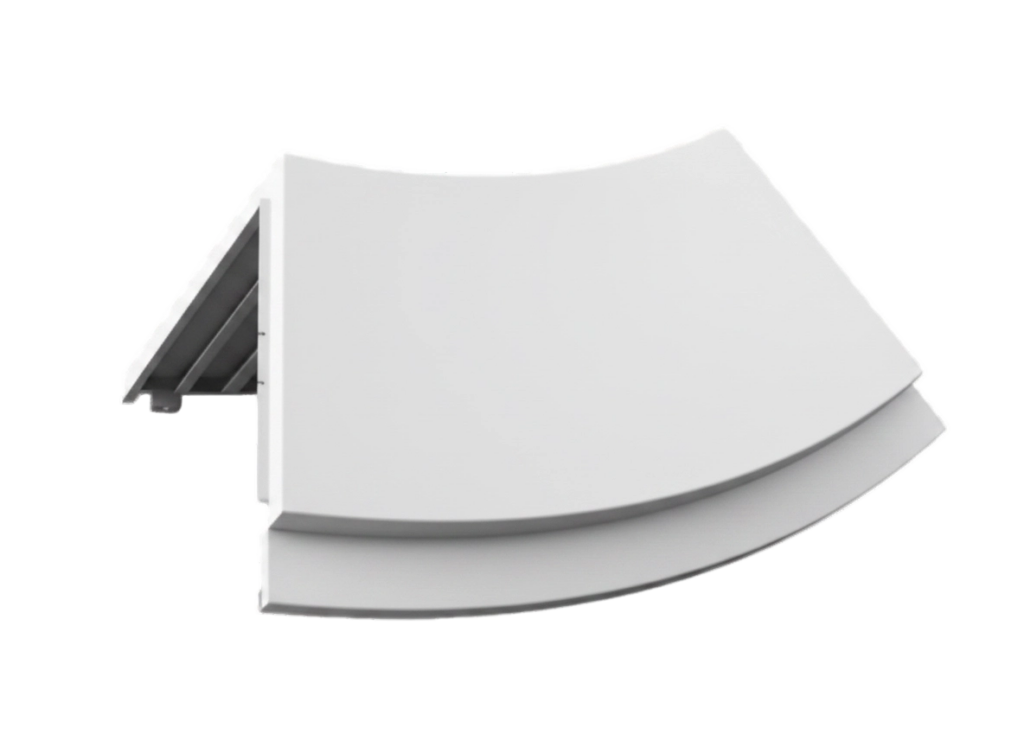

Modelling Aluminum Panel Featured Image
  • AA3003 H24 Series Alloy

    Material Grade

  • 140–180 MPa

    Tensile Strength

  • 203.5 W/m·K

    Thermal Conductivity

  • AAMA 2605 (Fluorocarbon)

    Coating Standard

  • 71 GPa

    Elastic Coefficient

Introduction

Advanced Geometric Facade Solutions

Our modelling aluminum panels are fabricated using high-strength AA3003 H24 alloy, specifically designed to achieve complex curves, angles, and 3D shapes that standard flat panels cannot accommodate. These systems integrate seamlessly with modern curtain wall structures, providing architects with unlimited creative freedom without compromising structural integrity.

Benefits

Why Choose Modelling Aluminum Panels

  • Superior Formability and Structural Strength

    Utilizing H24 state aluminum with an elongation rate of ≥5%, these panels allow for precise bending and contouring while maintaining a high tensile strength of up to 180 MPa.

  • Extreme Weather and Corrosion Resistance

    The PVDF fluorocarbon coating meets AAMA 2605 standards, showing only 5% maximum corrosion loss after 10 years of high-exposure testing in extreme environments.

  • High Thermal and Mechanical Stability

    With a melting point of 680°C and an expansion coefficient of 21 (-108) °C, these panels remain dimensionally stable under significant temperature fluctuations.

  • Precision Engineering and Easy Installation

    Designed for integration with aluminum alloy columns and galvanized steel supports, the system features pre-engineered nodes for secure, efficient site assembly.

Standard

Customization and Material Standards

Our panels are manufactured to strict chemical composition standards, ensuring a precise balance of Manganese (1.0-1.6%) and Iron (≤0.7%) for optimal durability and surface finish quality. We offer a wide range of gloss levels from low (min 19) to high (min 80) based on ASTM D523 measurements.

Available in various thicknesses and custom dimensions, the panels can be finished in a spectrum of colors with a chromatic aberration of ΔE ≤ 3. All units are tested for impact resistance, mortar resistance, and acid resistance to ensure long-term aesthetic performance in urban environments.

Applications

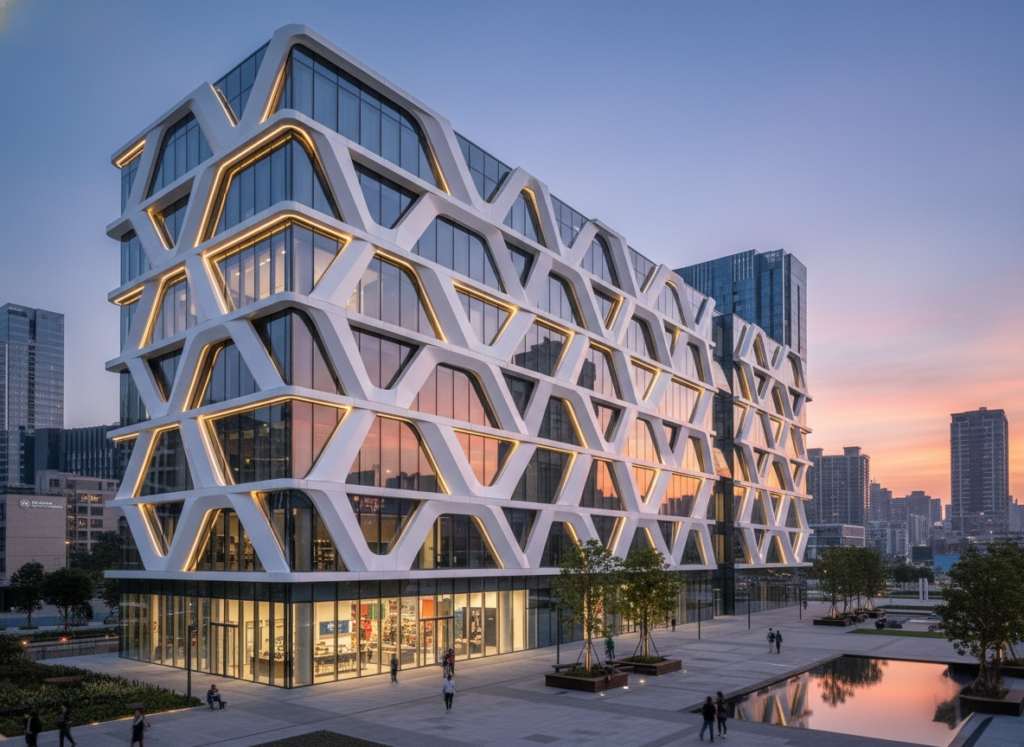

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical details regarding the performance, coating, and installation of our custom-shaped aluminum facade systems.

What aluminum alloy is used for these shaped panels?
We use AA3003 H24 series alloy, which offers the ideal balance of mechanical strength and flexibility required for complex modelling.
How does the coating perform against environmental pollutants?
The fluorocarbon coating is tested for acid and nitric acid resistance with no bubbling or visible change after 30-minute exposure tests.
Can these panels be used in high-wind coastal areas?
Yes, the system is designed for high-performance curtain walls and features a salt-spray resistance rating of 1/32" max corrosion per ASTM D2247.
What is the expected lifespan of the surface finish?
Our AAMA 2605 compliant coatings are tested for 4,000 hours of aging and 10 years of direct sun exposure with minimal gloss loss and color change.
How are the panels attached to the main building structure?
Panels are secured via a system of aluminum alloy beams, angle steel, and imbedded parts as shown in our standard installation node diagrams.
