Home Products Metal Curtain Wall Systems

Aluminum Mesh Panel

Versatile expanded metal systems providing unique visual depth, ventilation, and solar shading for contemporary architectural envelopes.

Request a Quote
Aluminum Mesh Panel Featured Image
  • AA1100, 3003, or 5005 Series Aluminum

    Material Grade

  • 1.5mm – 4.0mm

    Panel Thickness

  • 20mm – 300mm

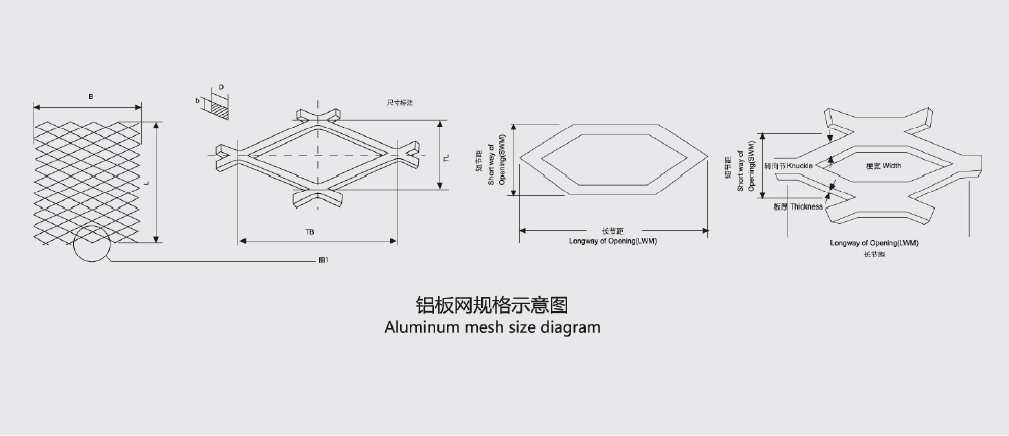

    Mesh Opening (LWD)

  • PVDF, Powder Coating, or Anodized

    Surface Treatment

  • ≤ 4.5 kPa

    Wind Load Resistance

Introduction

Precision-Engineered Architectural Mesh

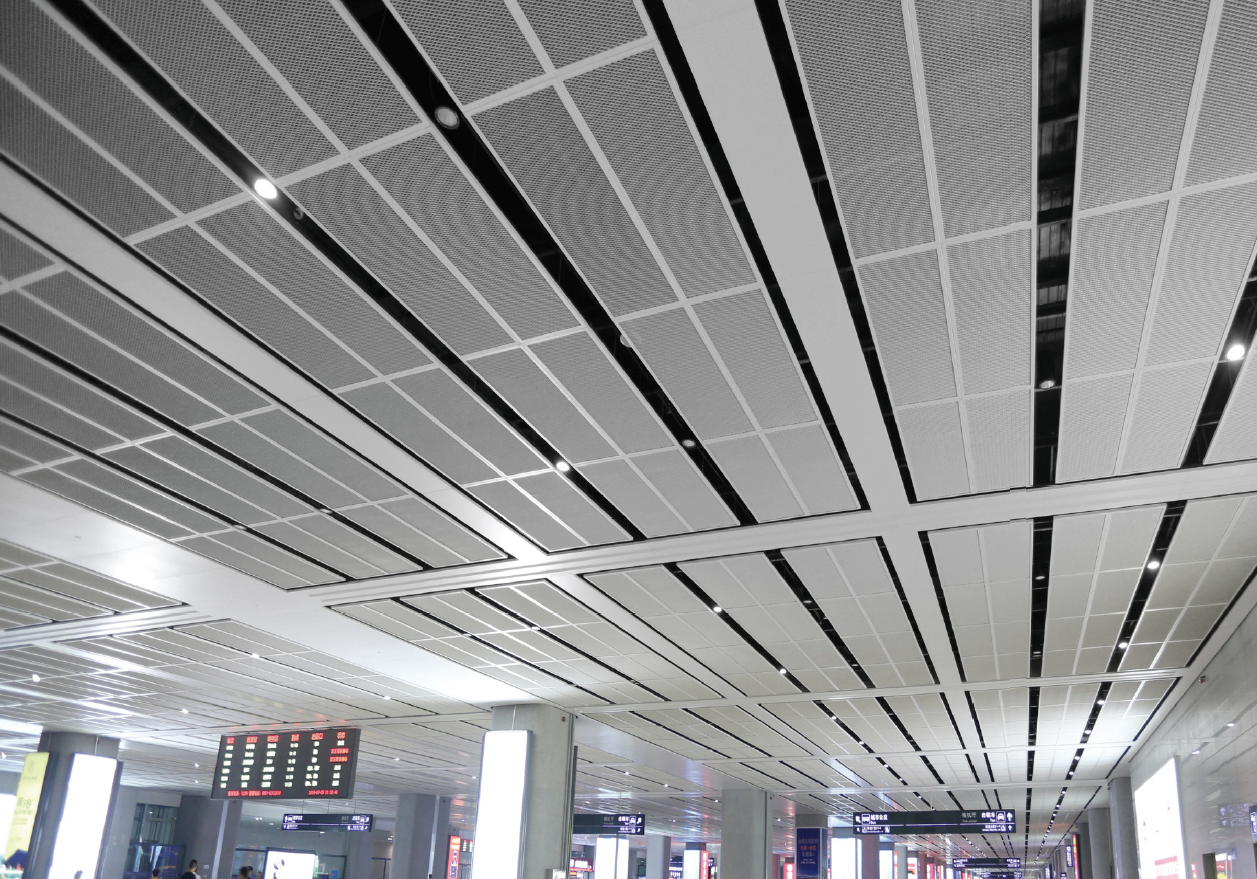

APEX EcoBuilt aluminum mesh panels are manufactured through a specialized cutting and stretching process that creates a seamless, diamond-shaped expanded metal structure. These panels offer a perfect balance of transparency and structural integrity, making them ideal for both exterior building skins and interior ceiling systems.

Benefits

Why Choose Aluminum Mesh Panels

  • Enhanced Natural Ventilation and Lighting

    The open-area ratio of the mesh allows for superior airflow and light diffusion, reducing mechanical cooling loads and artificial lighting needs.

  • Exceptional Strength-to-Weight Ratio

    The expanded metal process retains the structural integrity of the original sheet while significantly reducing overall weight for easier installation.

  • Dynamic Visual Three-Dimensionality

    Varying the mesh orientation and aperture size creates a shifting aesthetic that changes based on the viewer's perspective and sunlight angle.

  • Corrosion Resistance and Longevity

    Utilizing high-grade aluminum alloys and premium PVDF finishes ensures the panels withstand harsh environmental conditions without degradation.

Standard

Customization and Material Standards

Our aluminum mesh panels are available in a wide array of expanded patterns, including standard diamond, hexagonal, and custom decorative apertures. We provide full technical support to match the mesh density with your project's specific solar shading and privacy requirements.

Finishing options include high-durability PVDF coatings for exterior facades and polyester powder coatings for interior applications. All systems are engineered to meet international building codes for fire safety and structural performance in high-traffic public spaces.

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical insights regarding the specification and installation of expanded aluminum mesh systems

What is the maximum panel size available for mesh systems?
Standard panels are available up to 1500mm x 4000mm, though custom sizes can be engineered based on the mesh pattern and structural frame.
Can the mesh panels be used for curved facades?
Yes, aluminum mesh is highly malleable and can be curved or faceted to follow complex architectural geometries.
How do you determine the open area percentage?
The open area is calculated based on the strand width and the long/short way of the diamond (LWD/SWD) to meet specific airflow or shading targets.
What maintenance is required for exterior mesh panels?
Due to the self-draining nature of the mesh and high-quality PVDF finishes, maintenance is minimal, typically requiring only periodic pressurized water rinsing.
Are the panels supplied with a mounting frame?
We offer both individual mesh sheets and fully fabricated panels with integrated perimeter frames and mounting brackets for rapid site installation.
