Square Panel Ceiling System

Precision-engineered aluminum modular ceilings for contemporary architectural interiors.

Request a Quote
Square Panel Ceiling System Featured Image
  • AA3003 H24 Aluminum Alloy

    Material Grade

  • 140–180 MPa

    Tensile Strength

  • 203.5 W/m·°C

    Thermal Conductivity

  • AAMA 2605 Fluorocarbon

    Coating Standard

  • 71 GPa

    Elastic Coefficient

Introduction

Modular Precision in Aluminum

The APEX Square Panel Ceiling system is a versatile interior solution fabricated from high-strength AA3003 H24 aluminum alloy. Designed for seamless integration, these panels offer exceptional flatness and durability, featuring advanced fluorocarbon coatings that meet rigorous AAMA 2605 standards for chemical and weather resistance.

Benefits

Why Choose APEX Square Panel Ceilings

  • Superior Surface Durability

    Utilizing AAMA 2605 fluorocarbon coatings, our panels resist salt spray, humidity, and acid, maintaining a 5% maximum corrosion loss over 10 years.

  • Flexible Installation Methods

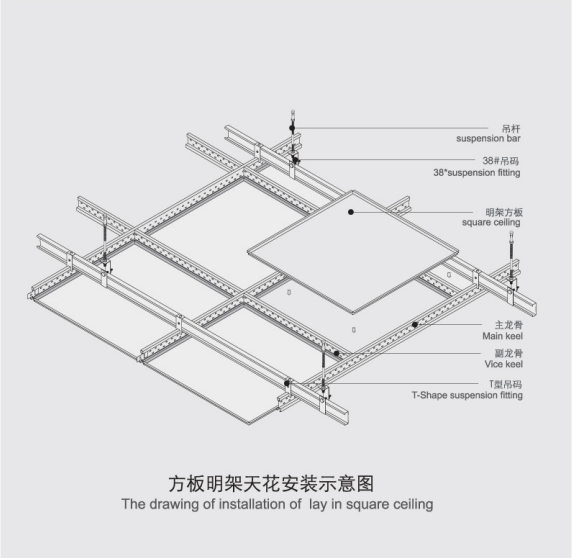

    Available in both 'Clip-in' concealed carrier systems for a monolithic look and 'Lay-in' exposed T-grid systems for easy plenum access.

  • Enhanced Acoustic Performance

    Optional micro-perforation patterns combined with acoustic fleece backing significantly reduce noise reverberation in high-traffic environments.

  • High Mechanical Stability

    The H24 state aluminum provides a tensile strength of up to 180 MPa, ensuring panels remain rigid and flat across large spans without sagging.

standard

Available Configurations

The system is available in three standard sightline widths — 50mm, 65mm, and 85mm — to suit different structural spans and glazing weights. Custom profiles are available for projects requiring non-standard geometries or enhanced performance targets.

All extrusions are manufactured at our 150,000 m² facility and can be finished in any RAL color via PVDF powder coating or fluorocarbon liquid paint, or with Type II / Type III anodizing.

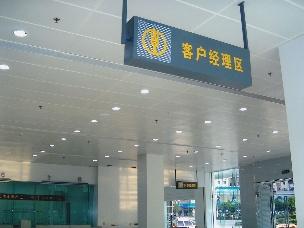

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical and logistical information for architects and contractors regarding our aluminum ceiling systems.

What is the difference between clip-in and lay-in systems?

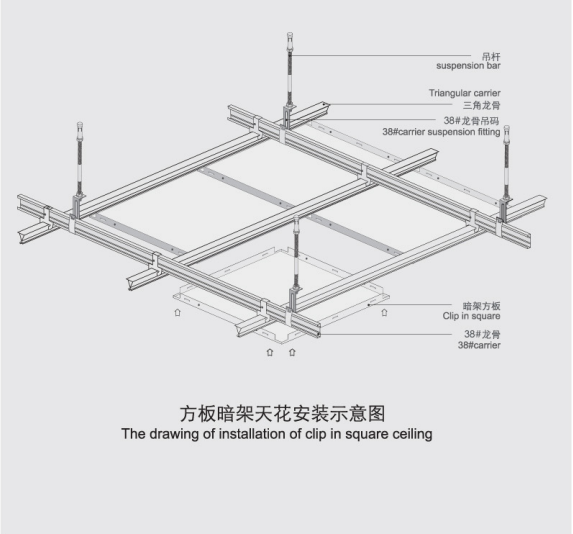

Clip-in systems use a concealed triangular carrier for a smooth, gapless appearance, while lay-in systems rest on an exposed T-grid for rapid removal and maintenance.
Can these panels be used in high-humidity areas?
Yes, the AA3003 alloy and fluorocarbon coating provide excellent moisture resistance, passing 72-hour humidity tests at 38°C without bubbling.
Are custom perforation patterns available?
We offer standard micro-perforations and can provide custom CNC perforation patterns to meet specific NRC (Noise Reduction Coefficient) targets.
How do the panels handle fire safety requirements?
Aluminum is a non-combustible material, and our fluorocarbon coatings are formulated to meet international fire safety standards for commercial interiors.
What is the maximum panel size available?
Standard sizes include 600x600mm and 300x300mm, but custom dimensions can be manufactured based on project-specific grid layouts.
