Directional Semi-Hidden Curtain Wall System

A flexible semi-hidden curtain wall system that allows selective exposure of horizontal or vertical framing elements, enabling distinct facade patterns and architectural expression.

Request a Quote

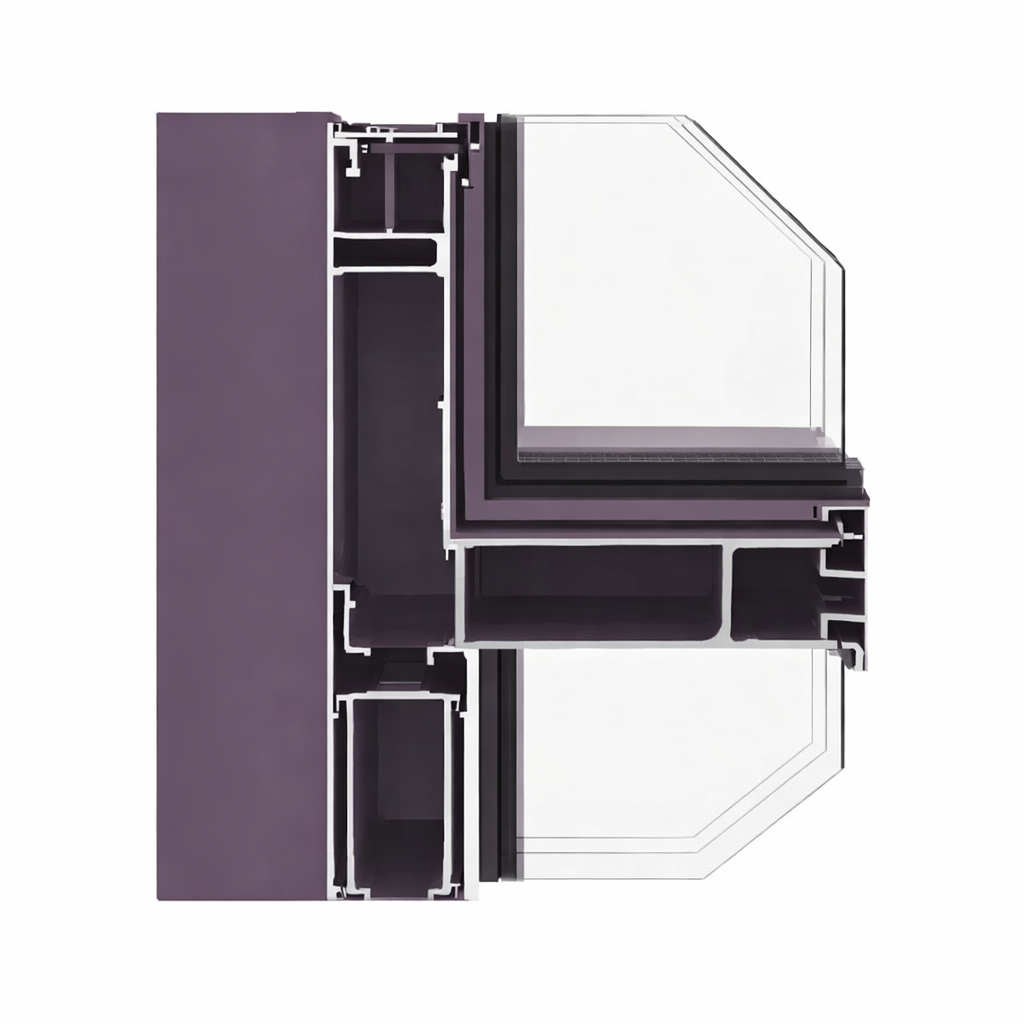

Directional Semi-Hidden Curtain Wall System Featured Image

60–180 mm
System Depth
≤1.4 W/m²K
Thermal Performance
≤6.5 kPa
Wind Load Resistance
2-4 Weeks
Lead Time
15 Years
Warranty

Introduction

Directional Semi-Hidden Curtain Wall System Overview

This directional semi-hidden curtain wall system allows selective exposure of either horizontal or vertical aluminum profiles while concealing the other direction. It provides greater design flexibility for architects, enabling varied facade expressions while maintaining reliable structural performance and sealing integrity.

Benefits

Why Use Directional Semi-Hidden Curtain Wall Systems

Dual Design Options for Facade Expression

Supports both horizontal exposed & vertical hidden, or vertical exposed & horizontal hidden configurations.
Enhanced Architectural Flexibility

Allows designers to create strong linear facade effects and directional visual emphasis.
Balanced Structural and Visual Performance

Combines concealed bonding with mechanical fixing for reliable stability and refined appearance.
Adaptable for Various Building Styles

Suitable for both modern curtain wall facades and projects requiring distinctive visual patterns.

Standard

Directional Curtain Wall Design and Finishing Options

The system supports two primary facade configurations: horizontal exposed with vertical concealed, and vertical exposed with horizontal concealed. This flexibility enables customized facade layouts according to architectural intent.

Surface finishes include powder coating, PVDF coating, and anodizing, ensuring durability and long-term performance. The system is compatible with insulated glass and laminated glass options for different performance requirements.
