Stone-Look Facade Cladding Panel

Achieve the timeless aesthetic of natural masonry with the precision and performance of modern engineered facade systems.

Request a Quote
Stone-Look Facade Cladding Panel Featured Image
  • 185–215 mm

    System Depth

  • ≤0.45 W/m²K

    Thermal Performance

  • ≤5.0 kPa

    Wind Load Resistance

  • 4-6 Weeks

    Lead Time

  • 15 Years

    Warranty

Introduction

Advanced Engineered Masonry Aesthetics

Our Stone-Look Facade Cladding Panel combines the rugged, multi-tonal texture of natural stacked stone with a sophisticated dry-hang mechanical fixing system. Utilizing rear-cut undercut anchors and stainless steel brackets, this system ensures maximum structural integrity while significantly reducing the dead load on the building structure compared to traditional solid stone.

Benefits

Why Choose Stone-Look Facade Cladding

  • Superior Mechanical Undercut Anchoring

    Utilizes back-bolt dry-hanging technology to provide a stress-free connection that enhances seismic resistance and safety.

  • Authentic Texture and Tonal Variety

    Precision-molded surfaces replicate the organic feel of split-face stone, available in diverse color palettes for architectural flexibility.

  • Reduced Structural Load Requirements

    Engineered to be lighter than full-thickness masonry, allowing for faster installation and lower costs in structural reinforcement.

  • All-Weather Durability and Maintenance

    High resistance to UV degradation, moisture absorption, and thermal expansion ensures the facade remains pristine for decades.

Standard

Technical Integration & Customization

The system is designed for integration with standard aluminum sub-frames, featuring adjustable stainless steel connectors that accommodate structural tolerances of up to 50mm. The air cavity between the panel and the insulation layer promotes natural ventilation, improving the building's overall thermal envelope.

Panels are available in various modular sizes and can be customized with specific surface treatments, including smooth, ribbed, or rough-hewn textures to meet specific project design requirements.

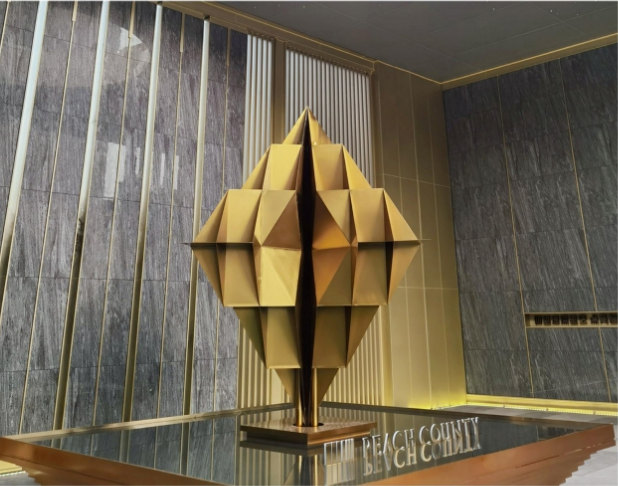

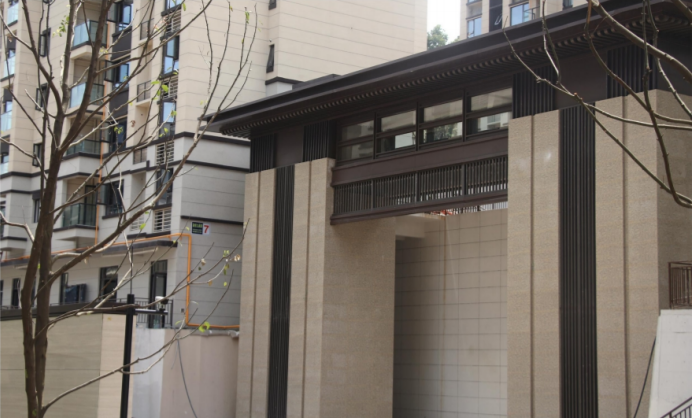

Applications

Related Applications

Explore More
FAQS

Frequently Asked Questions

Technical insights regarding the installation and performance of our stone-look cladding systems.

What fixing method is used for these panels?
The panels use a dry-hang system with rear-cut undercut anchors (back-bolts) and stainless steel brackets for a secure, non-adhesive connection.
Can this system be used on high-rise buildings?
Yes, the mechanical anchoring and wind load resistance of up to 5.0 kPa make it suitable for high-rise commercial and residential applications.
How does the weight compare to natural stone?
Our panels are approximately 30-50% lighter than traditional solid stone slabs of the same visual thickness, reducing the load on the primary structure.
Is the color integrated or painted on the surface?
The color is through-body or deeply integrated during the manufacturing process to prevent peeling, fading, or scratching over time.
Does the system include thermal insulation?
The cladding acts as the outer rainscreen; mineral wool or rigid foam insulation is typically installed within the 185-215mm system depth.
